Flow Designer Scripting

Purpose

Flow Designer scripting allows you to add server-side JavaScript logic inside a Flow Action when out-of-the-box Flow logic (conditions, lookups, updates) isn't enough.

It is primarily used for:

• Data transformation
• Conditional branching logic
• Calculations
• Complex record lookups
• Dynamic outputs

It is not meant to replace Script Includes or business logic layers. See Flow Script vs Business Rule

---

Where It Runs

• Server-side
• Executes within the Flow runtime engine
• Runs when the Flow is triggered
• Scoped to the application of the Flow

You do not have access to client-side objects like g_form.

---

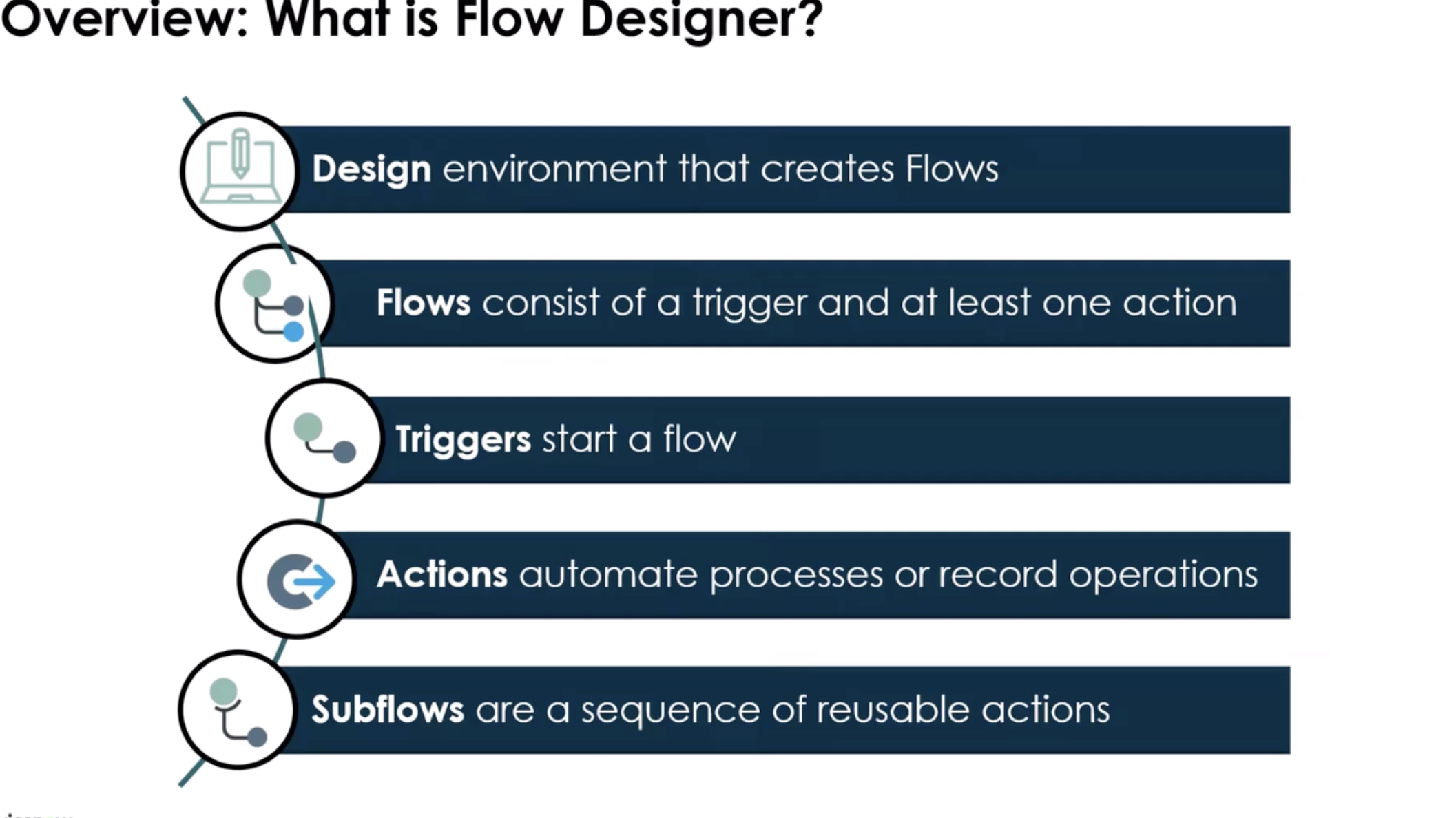

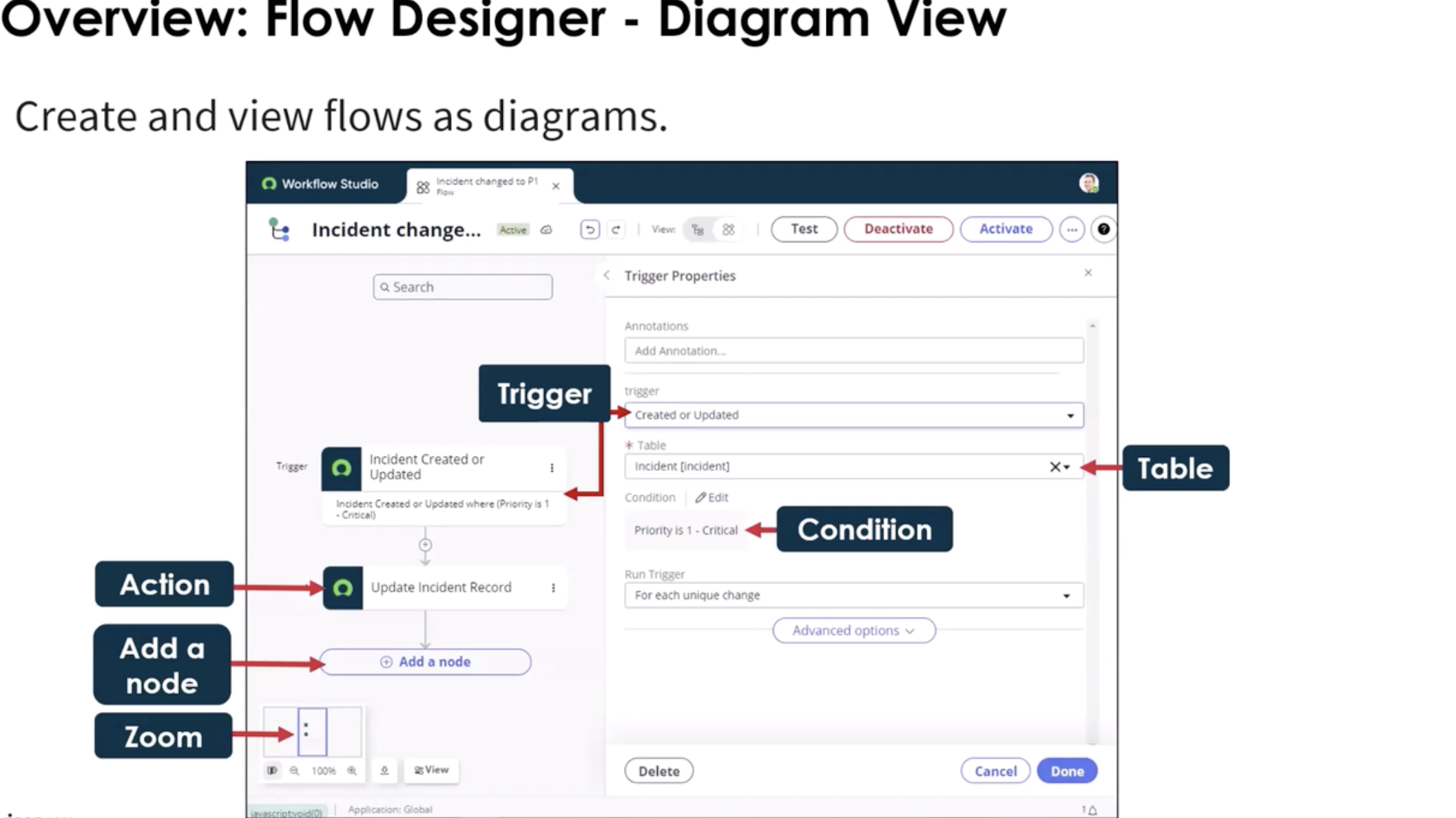

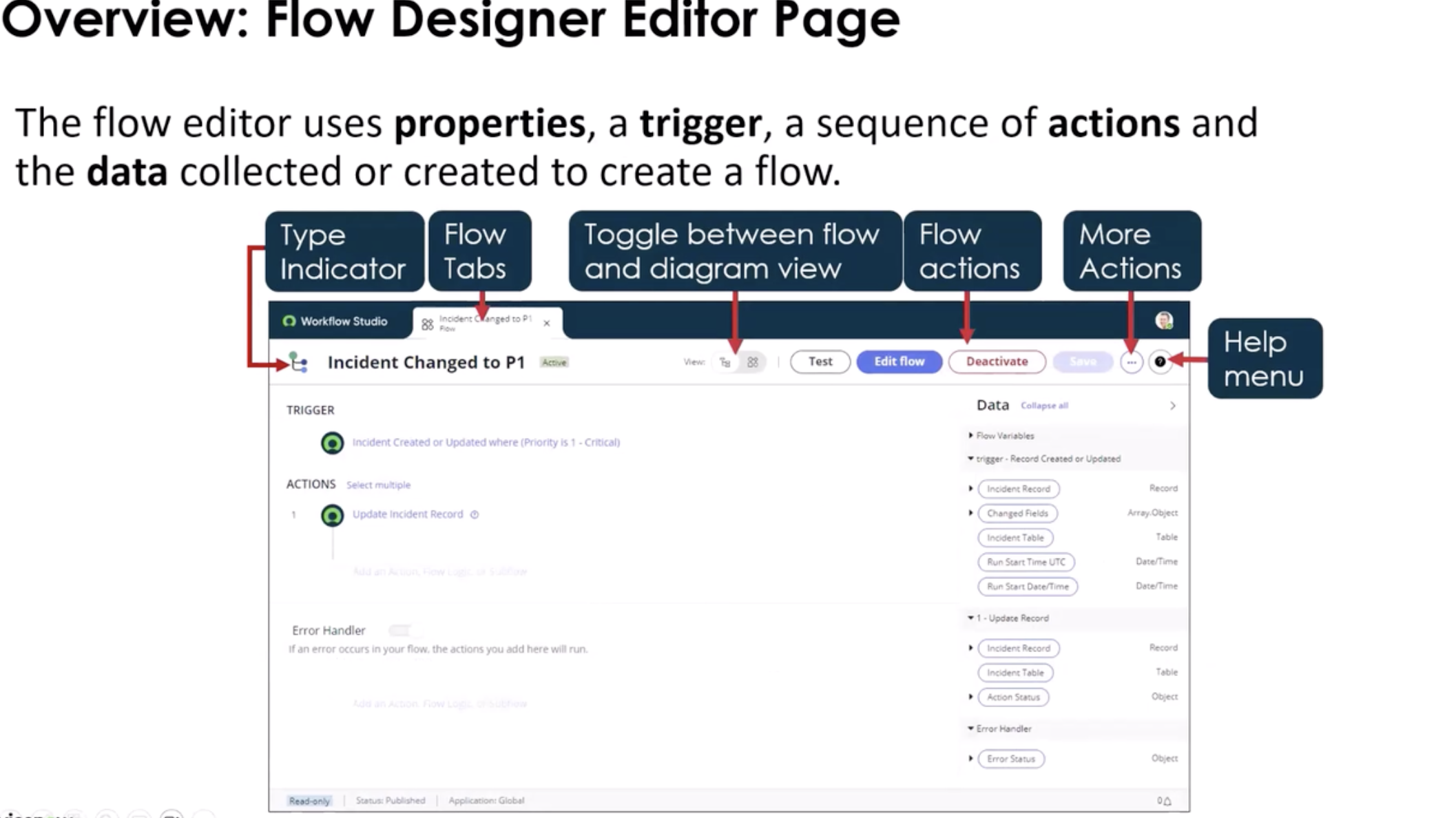

Types of Flow Scripting

Workflow Editor is outdated and Flow Designer is now part of Workflow Studio. Newer releases utilize Flow Designer

Types of Triggers

• Condition
• date-based
• application trigger: when you order something in the service catalog

Actions

A group of reusable operations that automate the Now Platform features without having to write code. You can test the actions just like you would test a flow.

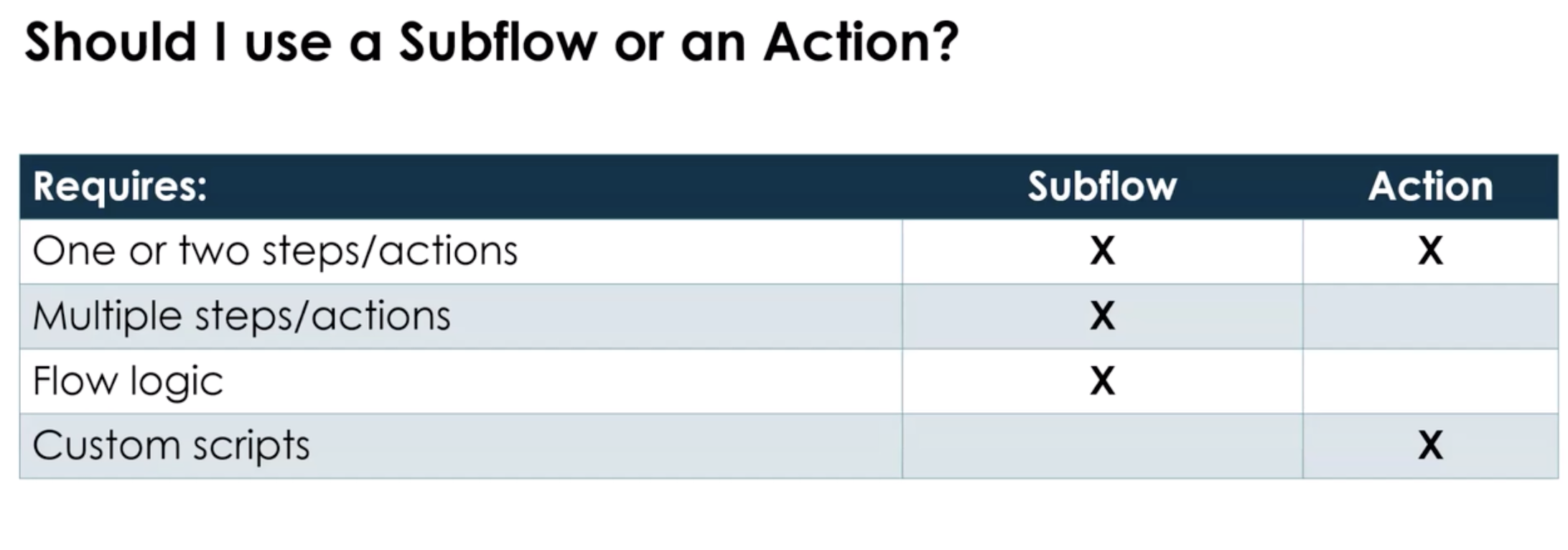

• Actions (can be custom), Flow Logic, or Subflows

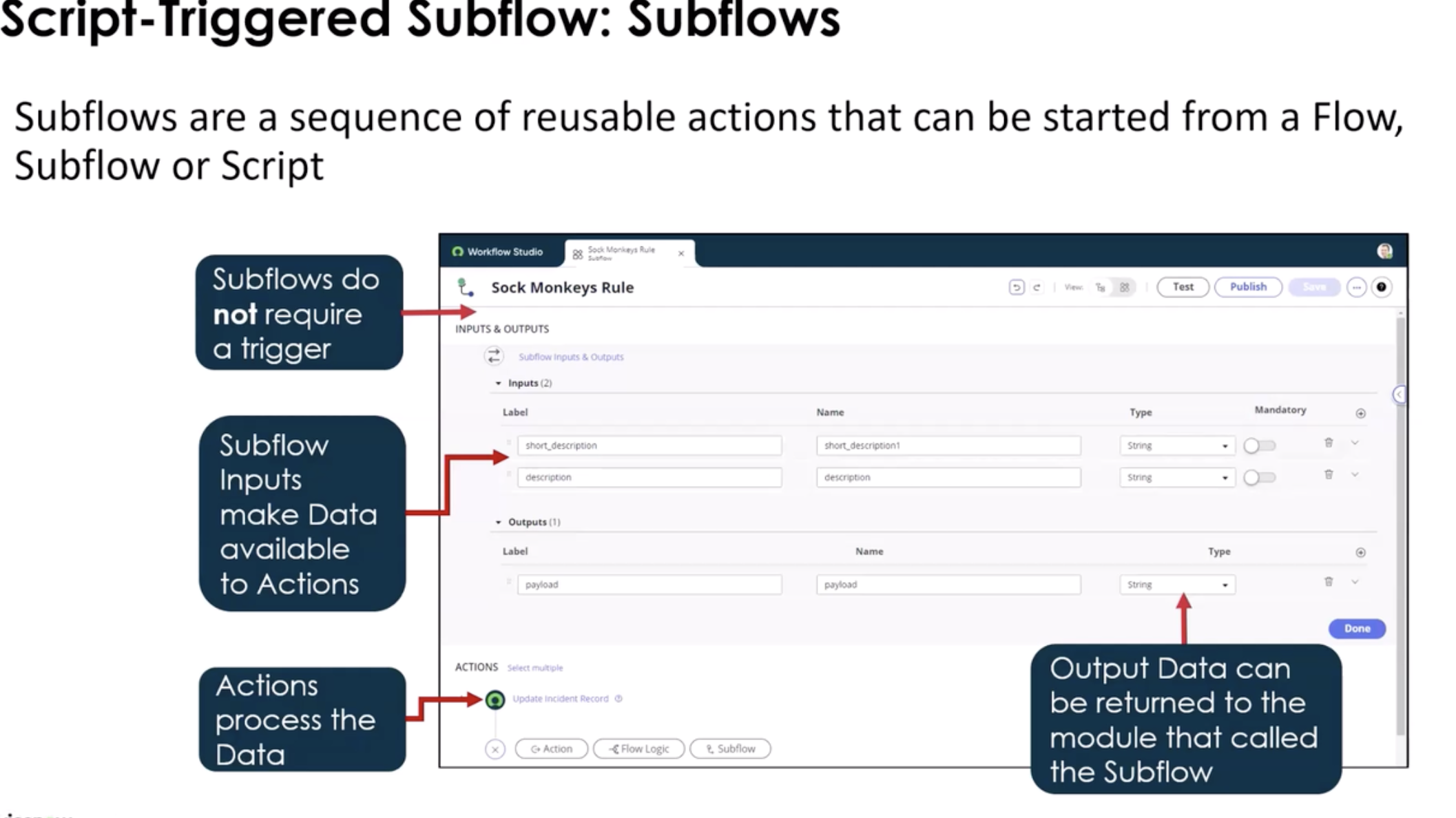

• Subflows do not have to have a trigger you can call them from an action

1. Script Step (Inside Flow)

• Inline JavaScript
• Uses inputs and outputs
• Good for lightweight logic
• If used as a subflow, you do not have to use a Flow to make it run. -- Server-Side Scripts - Business Rule, UI Action, Script Includes -- Server-Side Apis - Can be used in a none-blocking mode -- Client-Side JS Library - GlideFlow --> uses promises -- THere is a Code Snippet Generator

2. Custom Action Script

• Script inside a reusable Action
• Best practice when logic may be reused
• Encouraged for maintainability
• Use only when ServiceNow doesn't provide the functionality

3. In-line Scripting

• Script inside a record or table for an action based on the current context
• Can be used for additional filtering on the current record
• Use if you need to set or modify values during a flow

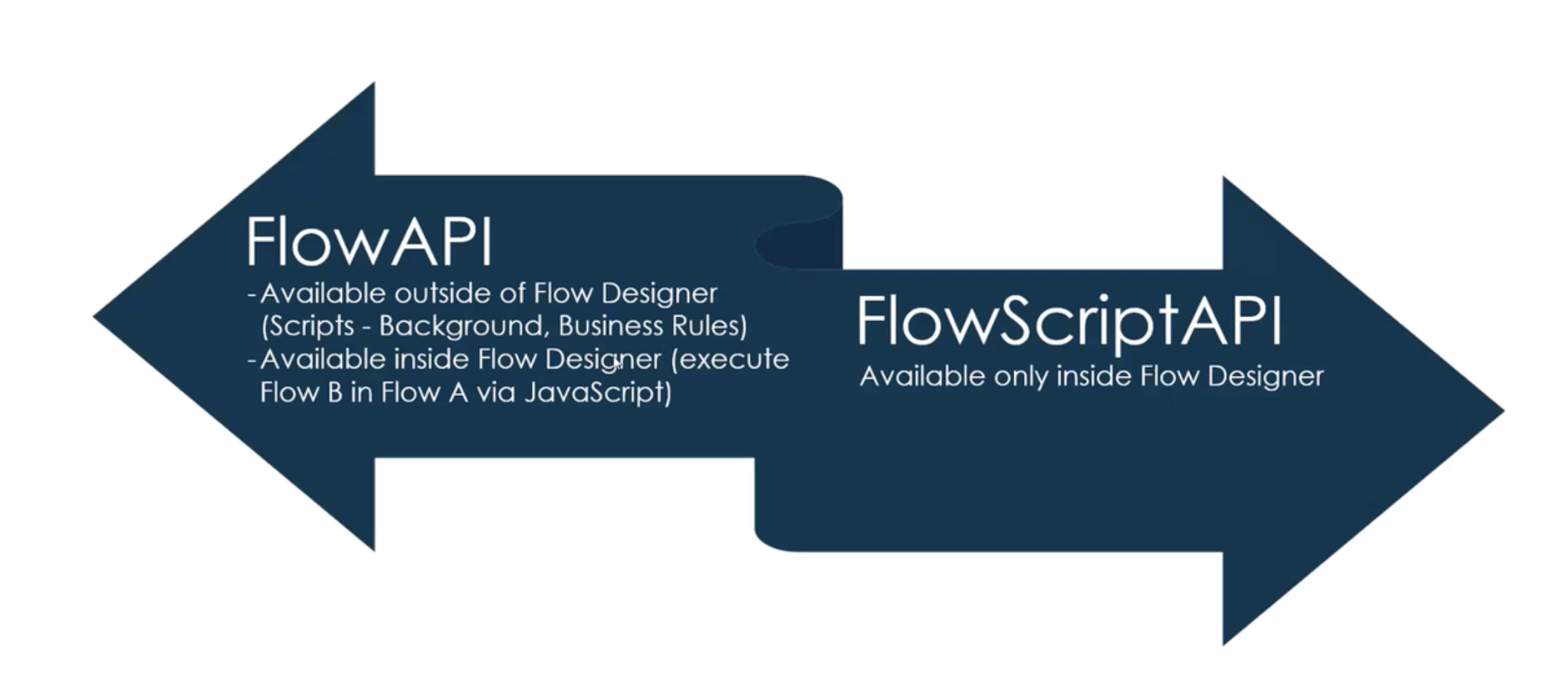

Flow API vs FlowScript API

Flow API

• Designed for managing Flows programmatically (starting flows, retrieving context, etc.)
• Typically used outside a script step, e.g., in Script Includes, UI Actions, or other server scripts
• Provides high-level operations on Flow execution

FlowScript API

• Designed for inside Flow scripting steps
• Scoped to the current Flow context
• Provides access to inputs, outputs, current, and Flow-specific utility methods
• Meant for custom logic in the Flow, not for starting other Flows

Feature	Flow API	FlowScript API
Scope	External scripts / global	Inside Flow script steps
Purpose	Control or inspect Flows	Run custom logic inside a Flow
Access	Flow context table, API methods	inputs, outputs, current record
Example Use Case	Start a Flow from a Script Include	Determine dynamic approver inside a Flow step

Note:

• Flow API → Think “control Flows from outside”
• FlowScript API → Think “custom logic inside Flow”

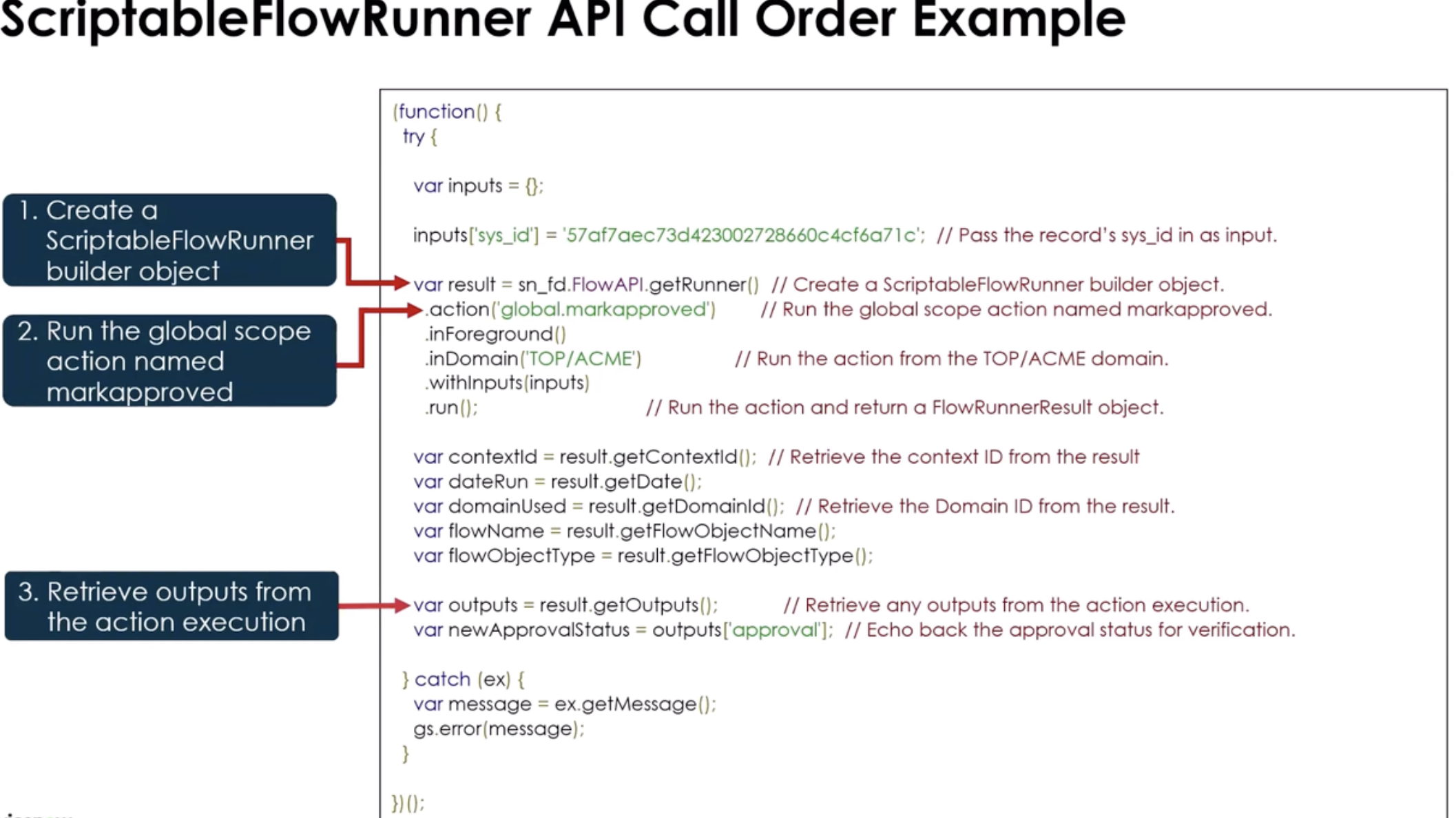

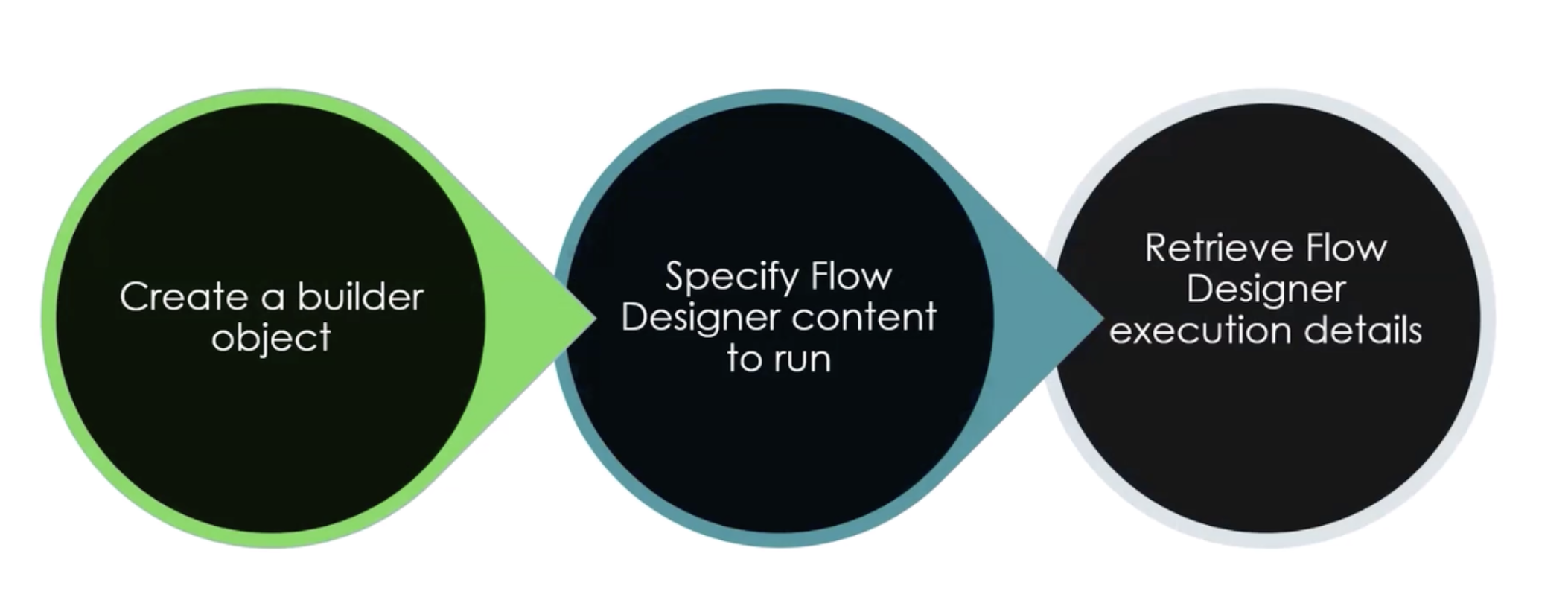

ScriptableFlowRunner API

Call Order

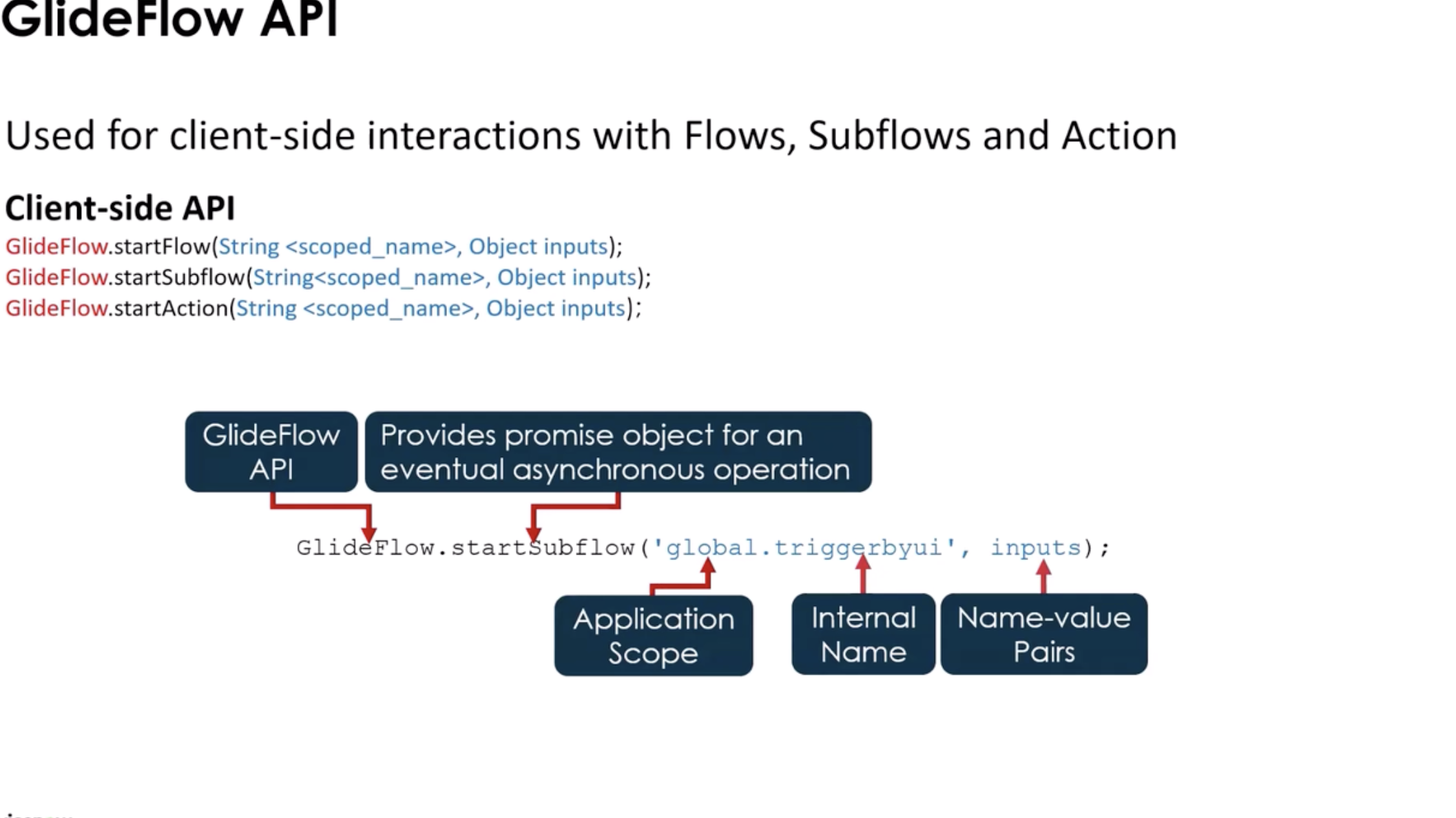

Glide Flow API

Use When

Use Flow scripting when:

• You need logic not achievable via Flow conditions
• You need to manipulate or transform data
• You must dynamically determine values (approvers, assignment groups, etc.)
• You need multi-step record queries

Do NOT use it when:

• Logic is reusable across multiple Flows → use Script Include
• The logic is large or complex
• It belongs in core business rules
• You need synchronous database validation logic

---

Script Structure

Inside a Script step:

(function execute(inputs, outputs) {
  var gr = new GlideRecord("incident");
  gr.addQuery("priority", 1);
  gr.query();

  var count = 0;
  while (gr.next()) {
    count++;
  }

  outputs.highPriorityCount = count;
})(inputs, outputs);

Key Objects

• inputs → Data passed into the script step
• outputs → Values returned to the Flow
• current → Available only in record-triggered Flows
• GlideRecord → For database operations
• gs → System logging

---

What It Touches

• Tables
• Flow context tables
• Any table queried via GlideRecord
• APIs
• GlideRecord
• GlideAggregate
• GlideSystem (gs)
• Scoped APIs

Remember: It runs in the application scope of the Flow. xs

---

Performance Considerations

• Avoid large loops over massive tables
• Use indexed fields in queries
• Prefer GlideAggregate over manual counting
• Avoid unnecessary record updates inside loops
• Consider asynchronous design

Flows can become slow if scripts are inefficient.

---

Common Mistakes

• Stuffing complex business logic into Script steps
• Not handling null/undefined inputs
• No error handling
• Hardcoding sys_ids
• Querying entire tables without filters
• Repeating logic across multiple Flows instead of using an Action

---

Error Handling Pattern

Enables flows to catch errors, and run a sequence of actions and sublows to correct issues. Can set to log the error or send a notification as well.

(function execute(inputs, outputs) {
  try {
    if (!inputs.userSysId) {
      throw "User Sys ID is required";
    }

    var user = new GlideRecord("sys_user");
    if (!user.get(inputs.userSysId)) {
      throw "User not found";
    }

    outputs.manager = user.manager;
  } catch (e) {
    gs.error("Flow Script Error: " + e);
    outputs.errorMessage = e;
  }
})(inputs, outputs);

---

1-Min Example (Dynamic Approval Path)

Use Case: Determine approver based on amount.

(function execute(inputs, outputs) {
  if (inputs.amount > 10000) {
    outputs.approver = inputs.director;
  } else {
    outputs.approver = inputs.manager;
  }
})(inputs, outputs);

Flow then routes approval dynamically.

---

Additional notes

• Flow scripting is server-side only
• Actions are reusable --- Script steps are not
• Prefer low-code Flow logic when possible
• Script Includes are better for reusable complex logic
• Know when to choose Flow vs Business Rule

When to Choose Flow vs Business Rule

Quick Decision Guide

Choose Flow Designer When:

• You want low-code / declarative logic
• The process involves approvals, notifications, or orchestration
• The logic spans multiple tables or systems
• You want visibility into execution (Flow context)
• Admin-level maintainability is important
• The logic is asynchronous or event-driven

Choose Business Rule When:

• You need synchronous execution during database operations
• The logic must run before/after insert, update, delete, or query
• You need tight control over transaction behavior
• Data integrity must be enforced immediately
• Performance is critical and must occur inline

---

Comparison Section

---

Flow Script vs Business Rule

Feature Flow Script Business Rule

---

Execution Runs inside Flow engine Runs during DB transaction Timing After trigger Before/After/Async Scope Flow context Table-specific Visibility Easy UI tracking Requires logs/debug Complexity Should stay light Can handle heavy logic Best For Orchestration logic Data integrity enforcement

Key Difference

Flow Script is orchestration-focused.\ Business Rules are transaction-focused.

If the database operation must be controlled --- use a Business Rule.\ If you're automating a process --- use Flow.

---

Flow vs Script Include

Feature Flow Script Include

---

Type Process automation tool Reusable code library Reusability Limited (unless Action) High Audience Admin + Dev Developer UI Visual builder Code-only Best For Process orchestration Shared business logic

Rule of Thumb

If logic will be reused across:

• Business Rules
• Flows
• UI Actions
• APIs

→ Put it in a Script Include.

Flow should call Script Includes for complex reusable logic.

---

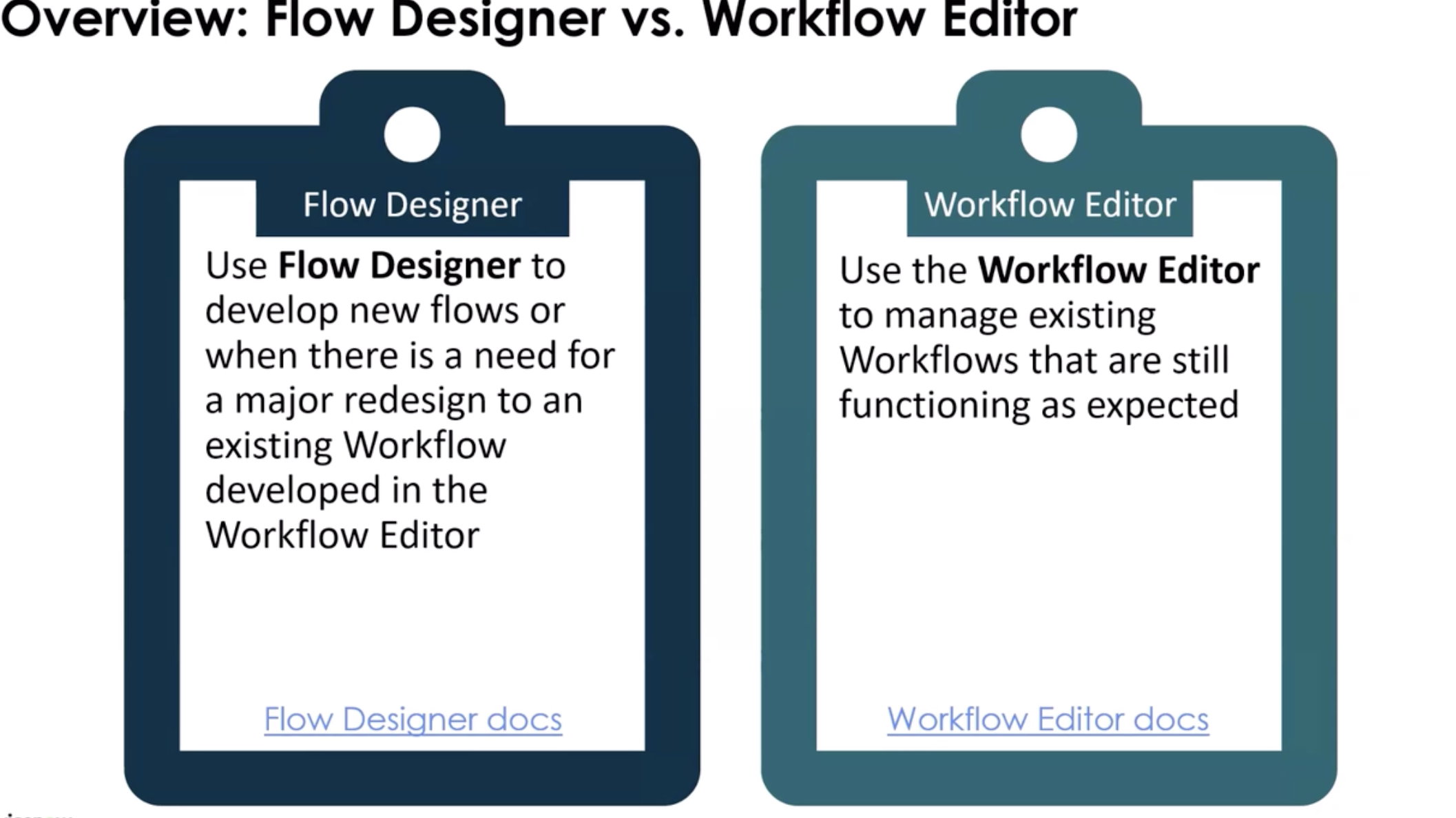

Flow vs Workflow (Legacy)

Feature Flow Designer Workflow (Legacy)

---

Platform Direction Current standard Deprecated direction UI Modern, visual Classic workflow editor Extensibility Actions + Spokes Activities Scripting Inline + Actions Script activities Future Support Active development Maintenance mode

Important!

• Workflow is legacy.
• Flow Designer is the strategic platform.
• New implementations should use Flow Designer.

Unless maintaining an older instance, choose Flow.

---

mental model:

• Script Include = Logic Layer\
• Business Rule = Data Enforcement Layer\
• Flow Designer = Process Automation Layer

If you separate these correctly, your applications scale cleanly and you avoid logic duplication.
